Festo
573348
Flow sensor SFAM-90-10000L-M-2SA-M12
The Festo 573348 industrial component is a thermal flow sensor utilizing a heat loss measurement method for unidirectional volumetric flow rate and volume detection from left to right. It operates within a flow measuring range of 100 l/min to 10000 l/min, handling compressed air as per ISO 8573-1:2010 [7:4:4] or nitrogen at a nominal temperature of 23 °C, an operating pressure up to 1.6 MPa (16 bar / 232 psi), and an overload pressure of 2 MPa (20 bar / 290 psi). The device features a medium and ambient temperature range of 0 °C to 50 °C, an accuracy of flow rate at ±(3% o.m.v. + 0.3% FS), a zero point repetition accuracy of 0.2 %FS, and a repetition accuracy margin of 0.8 %FS. It carries RCM compliance, c UL us recognition (UL E322346), RoHS material compliance, and CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573348
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573348.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Volume | Volumetric ow rate
- Flow direction
- Unidirectional | From left to right
- Measuring principle
- Thermal
- Method of measurement
- Heat loss
- Flow measuring range start value
- 100 l/min
- Flow measuring range end value
- 10000 l/min
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Zero point repetition accuracy in ± %FS
- 0.2 %FS
- Repetition accuracy margin in ± %FS
- 0.8 %FS
- Temperature co-efficient margin in ± %FS/K
- typ. 0.1%FS/K
- Pressure inuence of margin in ±%FS/bar
- 0.5 %FS/b.

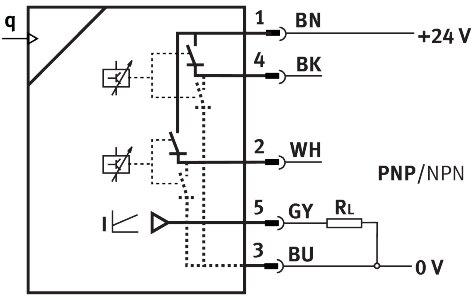

- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator or threshold value comparator, adjustable
