Festo
573357

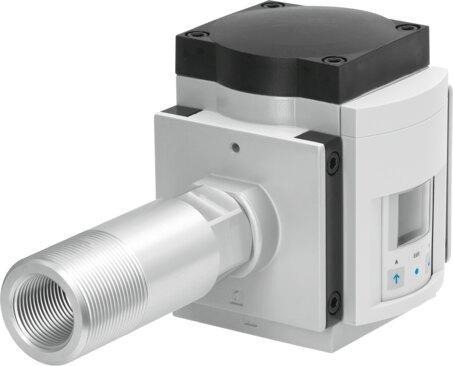

Flow sensor SFAM-90-15000L-TG112-2SV-M12
The Festo part number 573357 is a thermal industrial component that measures volume and volumetric flow rate for compressed air as per ISO 8573-1:2010 [7:4:4] or nitrogen moving unidirectionally from left to right. Utilizing the heat loss measurement principle, this device operates across a flow measuring range from 150 l/min to 15000 l/min with an operating pressure up to 1.6 MPa (16 bar / 232 psi) and an overload pressure of 2 MPa (20 bar / 290 psi). It features a flow rate accuracy of ±(3% o.m.v. + 0.3% FS), a zero point repetition accuracy of 0.2 %FS, a repetition accuracy margin of 0.8 %FS, and operates within a medium and ambient temperature range of 0 °C to 50 °C at a nominal temperature of 23 °C. Certified with RCM compliance, c UL us recognition (UL E322346), CE marking per EU EMC and RoHS directives, and corresponding UKCA markings, the unit is fully RoHS compliant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573357
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573357.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Volume | Volumetric ow rate
- Flow direction
- Unidirectional | From left to right
- Measuring principle
- Thermal
- Method of measurement
- Heat loss
- Flow measuring range start value
- 150 l/min
- Flow measuring range end value
- 15000 l/min
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Zero point repetition accuracy in ± %FS
- 0.2 %FS
- Repetition accuracy margin in ± %FS
- 0.8 %FS
- Temperature co-efficient margin in ± %FS/K
- typ. 0.1%FS/K
- Pressure inuence of margin in ±%FS/bar
- 0.5 %FS/b.
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator or threshold value comparator, adjustable
