Name: Festo 573391 Air solenoid valve VUVG-S10-T32H-MZT-M5-1T1L
Brand: Festo

Air solenoid valve VUVG-S10-T32H-MZT-M5-1T1L

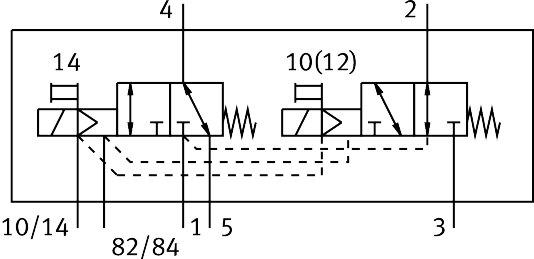

The Festo 573391 is a 10 mm electrical industrial component featuring a 2x3/2 monostable open/closed valve function with a piston gate valve structural design and mechanical spring reset. Operating on 24V DC with an operating pressure range of -0.9 bar to 10 bar and a normal nominal flow rate of 130 l/min, this c UL us recognized unit provides IP65 and IP67 protection, an M5 pneumatic working port, and an LED signal status display. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573391
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573391.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2, open/closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 130 l/min
Pneumatic working port: M5
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | IP67
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Lap: Positive overlap
Signal status display: LED
Pilot pressure MPa: 0.2 MPa...0.8 MPa
Pilot pressure: 2 bar...8 bar
Max. switching frequency: 3 Hz
Switching time oﬀ: 20 ms
On switching time: 10 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 µs
Max. negative test pulse on 1 signal: 3000 µs
Coil characteristics: 22 V DC: 1.0 W

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573391. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
