Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

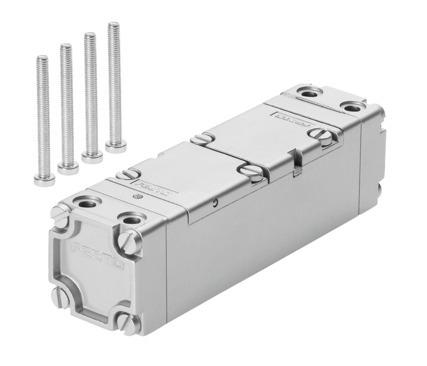

Reference imageConfirm configuration by manufacturer part number.
Festo
5734
Pneumatic valve CL-5/2-1/4
The Festo 5734 is a monostable 5/2-way pneumatic valve featuring a normal nominal flow rate of 1400 l/min and a nominal width of 6.5 mm. It operates within a pressure range of 1 bar to 10 bar, a pilot pressure range of 2 bar to 10 bar, and supports a maximum switching frequency of 40 Hz with an on switching time of 28 ms. Designed for sub-base mounting in any position, this component utilizes G1/4 working ports, G1/8 pilot air ports 12 and 14, and functions with compressed air matching ISO 8573-1:2010 [7:4:4] standards within a medium temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5734
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5734.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 1 bar...10 bar
- Nominal width
- 6.5 mm
- Mounting position
- Any
- Manual override
- Non-detenting
- Pilot pressure
- 2 bar...10 bar
- Max. switching frequency
- 40 Hz
- On switching time
- 28 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -10 °C...60 °C
- Type of mounting
- On sub-base
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G1/4
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Diaphragm material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5734. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
