Name: Festo 573411 Air solenoid valve VUVG-B10-T32U-AZT-F-1T1L
Brand: Festo

Air solenoid valve VUVG-B10-T32U-AZT-F-1T1L

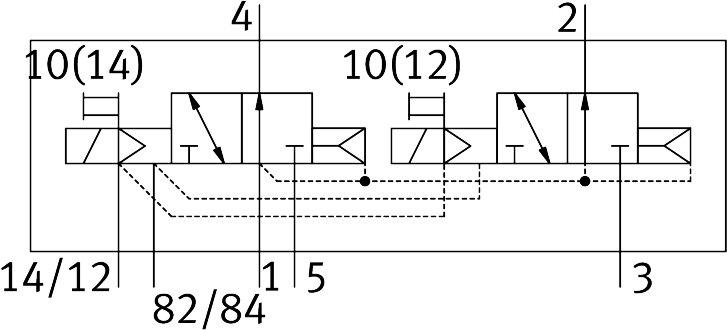

The Festo 573411 is an electrical 2x3/2 open monostable industrial component utilizing a piston gate valve structural design with a soft sealing principle and positive overlap. Operating at 24V DC with an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and a normal nominal flow rate of 150 l/min, this piloted valve features an external pilot air supply port, pneumatic spring reset method, and adjustable exhaust air function. The assembly includes an IP65 and IP67 degree of protection, c UL us recognition (OL), an LED signal status display, and detenting or non-detenting manual override options for installation in any mounting position with a 10 mm valve size, flanged pneumatic working ports, and a pilot pressure of 0.15 MPa to 0.8 MPa. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573411
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573411.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 open monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 150 l/min
Pneumatic working port: Flange
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | IP67
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Signal status display: LED
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Max. switching frequency: 3 Hz
Switching time oﬀ: 20 ms
On switching time: 8 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 µs
Max. negative test pulse on 1 signal: 3000 µs
Coil characteristics: 22 V DC: 1.0 W
Permissible voltage uctuations: +/- 10%
