573423

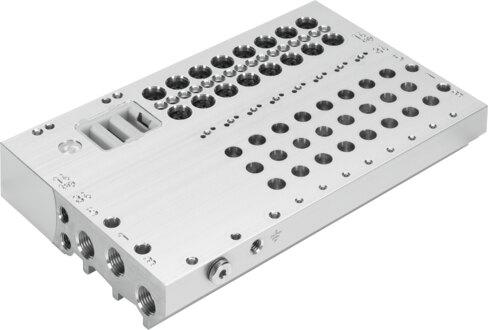

Name: Festo 573423 Manifold rail VABM-L1-10G-G18-4-GR
Brand: Festo

Manifold rail VABM-L1-10G-G18-4-GR

The Festo 573423 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm and a maximum of 4 valve positions. This part weighs 329 g, includes M5 pilot air ports 12/14 and pilot exhaust air ports 82/84, and provides G1/8 pneumatic connections 1, 3, and 5. Built for any mounting position, it is RoHS compliant, holds c UL us recognition (OL), and features a corrosion resistance class (CRC) of 2 with VDMA24364-B1/B2-L LABS conformity and a storage temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573423
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573423.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 10.5 mm
Mounting position: Any
Max. no. of valve positions: 4
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Product weight: 329 g
Pilot air port 12/14: M5
Pilot exhaust air port 82/84: M5
Pneumatic connection 1: G1/8
Pneumatic connection 3: G1/8
Pneumatic connection 5: G1/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573423. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
