Festo
573429

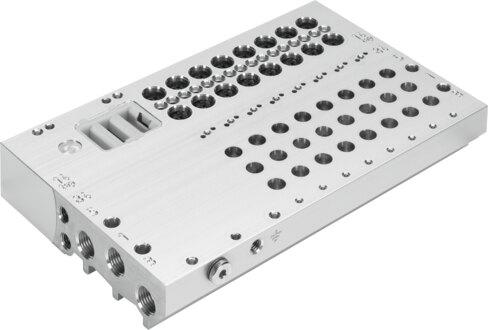

Manifold rail VABM-L1-10G-G18-10-GR
The Festo 573429 is an industrial component featuring a width dimension of 10.5 mm, a product weight of 533 g, and a wrought aluminum alloy manifold rail material with a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Built for any mounting position, it accommodates a maximum of 10 valve positions, features M5 pilot air and exhaust ports (12/14 and 82/84), and includes G1/8 pneumatic connections (1, 3, and 5). This RoHS-compliant part operates within a storage temperature range of -20 °C to 60 °C, adheres to VDMA24364-B1/B2-L LABS conformity, and is c UL us-recognized (OL) certified. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573429
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573429.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 10
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Product weight
- 533 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573429. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
