Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
573431

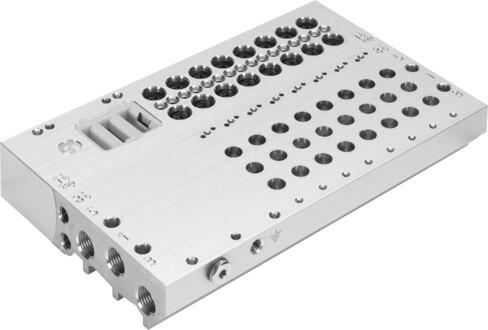

Manifold rail VABM-L1-10G-G18-16-GR
The Festo 573431 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm, a product weight of 737 g, and a moderate corrosion stress corrosion resistance class of 2. It accommodates a maximum of 16 valve positions, offers any mounting position, and includes M5 pilot air ports 12/14, M5 pilot exhaust air ports 82/84, alongside G1/8 pneumatic connections 1, 3, and 5. This RoHS compliant part operates within a storage temperature range of -20 °C to 60 °C, conforms to VDMA24364-B1/B2-L LABS (PWIS), and carries c UL us recognition (OL) certification. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573431
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573431.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Mounting position
- Any
- Max. no. of valve positions
- 16
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Product weight
- 737 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573431. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
