573440

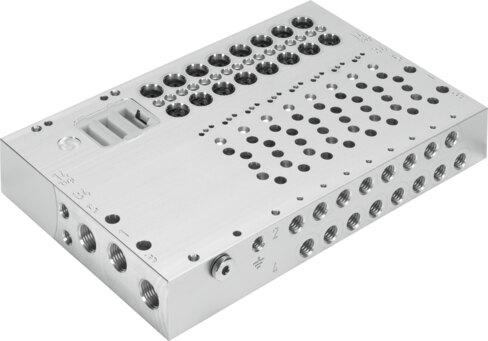

Name: Festo 573440 Manifold rail VABM-L1-10HW-G18-10-GR
Brand: Festo

Manifold rail VABM-L1-10HW-G18-10-GR

The Festo 573440 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm and a product weight of 616 g. It supports any mounting position, accommodates a maximum of 10 valve positions, and includes G1/8 pneumatic connections 1, 3, and 5, M7 pneumatic connections 2 and 4, M5 pilot air ports 12/14, and M5 pilot exhaust air ports 82/84. Built with RoHS-compliant materials, it meets CRC 2 moderate corrosion stress standards, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 cleanroom suitability class 6, c UL us recognition, and F1a reduced Cu/Zn/Ni suitability for Li-ion battery production within a -20 °C to 60 °C storage temperature range. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573440
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573440.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 10.5 mm
Mounting position: Any
Max. no. of valve positions: 10
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Product weight: 616 g
Pilot air port 12/14: M5
Pilot exhaust air port 82/84: M5
Pneumatic connection 1: G1/8
Pneumatic connection 2: M7
Pneumatic connection 3: G1/8
Pneumatic connection 4: M7
Pneumatic connection 5: G1/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573440. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
