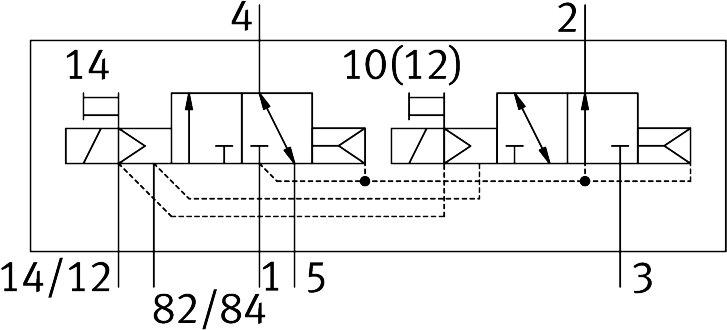

Reference imageConfirm configuration by manufacturer part number.
Festo
573466
Air solenoid valve VUVG-S14-T32H-AZT-G18-1T1L
The Festo 573466 is an electrical 14 mm piston gate valve featuring a 2x3/2 open/closed monostable valve function, a normal nominal flow rate of 610 l/min, and G1/8 pneumatic working ports. Operating on 24V DC within a pressure range of 1.5 bar to 10 bar, this piloted component includes an external pilot air supply port, adjustable exhaust air, a pneumatic spring reset, soft sealing, and an LED signal status display. It offers IP65 and IP67 degrees of protection, detenting and non-detenting manual override, and c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573466
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573466.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 610 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | IP67
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 29 ms
- On switching time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
- Coil characteristics
- 22 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
