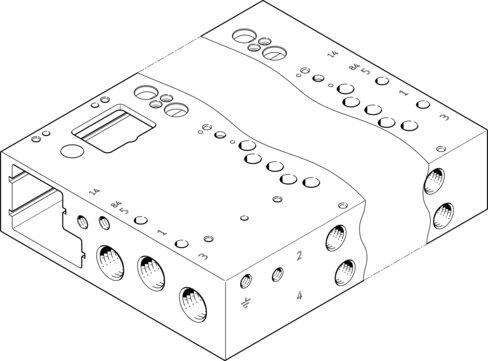

Reference imageConfirm configuration by manufacturer part number.
Festo
573506
Manifold rail VABM-L1-14W-G14-10-GR
The Festo 573506 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 16 mm, a product weight of 1445 g, and support for up to 10 valve positions in any mounting position. This unit includes M5 pilot air and exhaust ports alongside G1/4 and G1/8 pneumatic connections, operating within a storage temperature range of -20 °C to 60 °C. It holds c UL us recognition, a CRC rating of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 Class 6 cleanroom suitability, and F1a suitability for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573506
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573506.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 10
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Product weight
- 1445 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
