Festo
573510

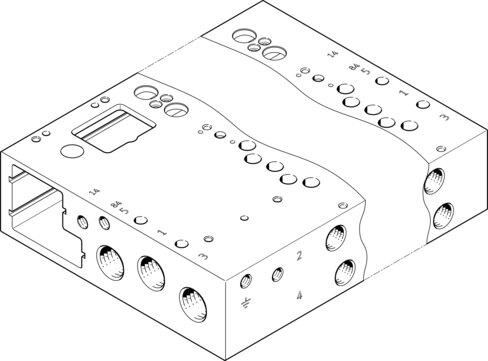

Manifold rail VABM-L1-14W-G14-24-GR
Manufactured by Festo from wrought aluminum alloy with a width dimension of 16 mm and a product weight of 2859 g, this industrial component accommodates up to 24 valve positions in any mounting position. It features M5 pilot air and exhaust ports, G1/4 and G1/8 pneumatic connections, and a CRC 2 moderate corrosion stress rating alongside ISO Class 6 cleanroom suitability and VDMA24364-B1/B2-L LABS conformity. The RoHS-compliant assembly holds c UL us recognition and is suitable for battery production with reduced Cu/Zn/Ni values within a storage temperature range of -20 °C to 60 °C. Request a quote by submitting the exact part number 573510, required quantity, and application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 24
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Product weight
- 2859 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
