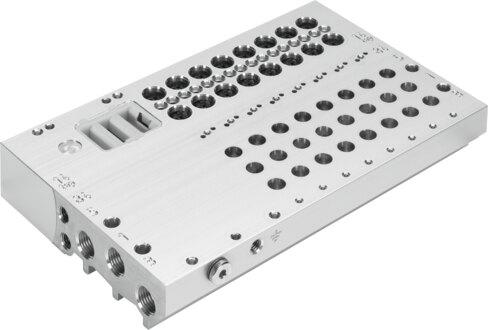

Reference imageConfirm configuration by manufacturer part number.
Festo
573605
Manifold rail VABM-L1-...
The Festo 573605 industrial component features a wrought aluminum alloy manifold rail with a corrosion resistance class of 2 and supports a maximum of 24 valve positions in any mounting position. It includes M5 pilot air and exhaust ports alongside configurable pneumatic connections, achieving ISO 14644-1 Class 6 cleanroom suitability and F1a Li-ion battery production compatibility. This RoHS-compliant part operates within a storage temperature range of -20 °C to 60 °C and holds c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573605
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573605.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm | 16 mm | 19 mm
- Mounting position
- Any
- Max. no. of valve positions
- 24
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/8 | G1/4 | G3/8
- Pneumatic connection 2
- M5 | M7 | G1/8 | G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573605. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
