573606

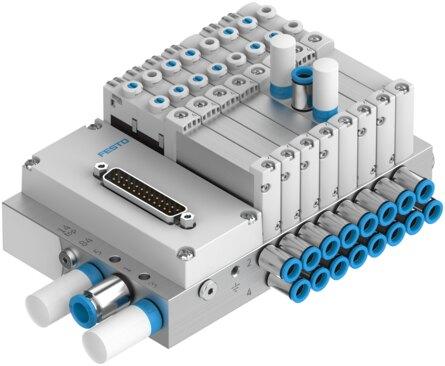

Name: Festo 573606 Valve manifold VTUG
Brand: Festo

Valve manifold VTUG

The Festo part number 573606 is an industrial component featuring electrical actuation via AP interface, individual connection, fieldbus, I-Port, IO-Link, and multi-pin options. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media, supporting an operating pressure range of -0.09 MPa to 1 MPa and a medium temperature range of -5 °C to 60 °C. The unit provides IP40, IP65, IP67, IP69K, and NEMA 4X degrees of protection along with a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573606
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573606.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: AP interface | Individual connection | Fieldbus | I-Port | IO-Link® | Multi-pin
Electrical I/O system: No
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...60 °C
Ambient temperature: -5 °C...60 °C
Storage temperature: -10 °C...60 °C
Degree of protection: IP40 | IP65 | IP67 | IP69K | NEMA 4X
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Operating pressure for valve manifold with internal pilot air supply: 1.5 bar...8 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - recognized (OL)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573606. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
