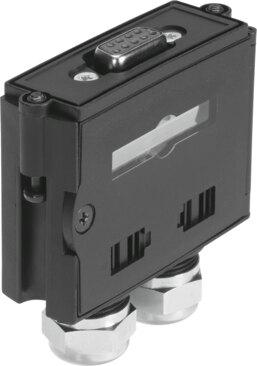

Name: Festo 573695 Multi-pin plug socket NECA-S1G9-P9-MP5
Brand: Festo

Multi-pin plug socket NECA-S1G9-P9-MP5

The Festo part number 573695 is an industrial component featuring a 9-pin Sub-D socket and a 9-pin screw terminal, housed in PA-reinforced material with a product weight of 60 g. Designed for through-hole mounting, it operates at a nominal DC voltage of 24 V within a 21.6 V to 26.4 V range, supporting a current rating of 1 A at 40° C. This IP65-rated unit accommodates cable diameters from 5 mm to 10 mm and connection cross sections from 0.34 mm² to 1 mm², utilizing a brass union nut, steel screws, and NBR seals. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573695
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573695.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: With through-hole
Product weight: 60 g
Electrical connection 1: Socket, Sub-D, 9-pin
Electrical connection 2: Screw terminal, 9-pin
DC operating voltage range: 21.6 V...26.4 V
Nominal operating voltage DC: 24 V
Current rating at 40° C: 1 A
Approved cable diameter: 5 mm...10 mm
Connection cross section: 0.34 mm²...1 mm²
Information on port cross section: 0.34–0.5 mm² when using cable end sleeves
Degree of protection: IP65 | As per IEC 60529
Ambient temperature: 0 °C...50 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 95% | Non-condensating
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Housing material: PA-reinforced
Material of union nut: Brass
Material of screws: Steel
Seals material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573695. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
