Festo
573710

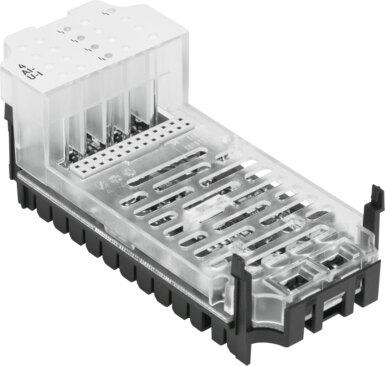

Analogue module CPX-4AE-U-I
The Festo part number 573710 is an industrial component measuring 50 mm by 107 mm by 50 mm with a product weight of 46 g, operating within a DC voltage range of 18 V to 30 V at a nominal 24 V. Constructed from PA-reinforced and PC housing materials with a CRC 1 corrosion resistance class, this module features LED indicators for 1 group and 4 channel diagnostics alongside comprehensive parameterization capabilities including wire break monitoring and limit value violation detection. It operates at an internal cycle time of 500 µs with a maximum shielded cable length of 30 m across an ambient temperature range of -5 °C to 50 °C while maintaining RoHS compliance and VDMA24364-B2-L LABS conformity. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573710
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573710.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 50 mm
- Product weight
- 46 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- Depending on terminal block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 30 m | Shielded
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED indicators
- 1 group diagnostics | 4 channel diagnostics
- Diagnostics
- Wire break per channel | Limit value violation per channel | Parameterization error | Overow/underow | Input overload | Short circuit of sensor supply
- Parameterization
- Data format | Forcing per channel | Limit value monitoring per channel | Measured value smoothing | Sensor supply active | Signal range per channel | Response to short circuit | Response to input overload | Wire break monitoring per channel
- Internal cycle time
- 500 µs
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Nominal operating voltage DC load voltage
- 24V +/- 2%
- Intrinsic current consumption at nominal operating voltage
- Type. 50 mA
