Festo
573717

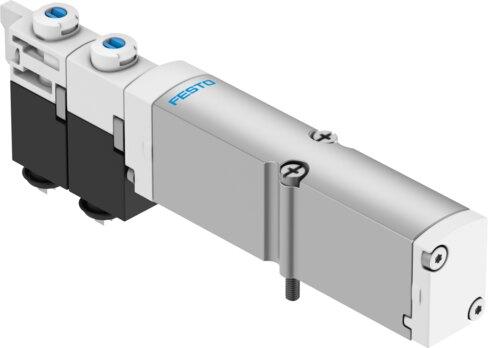

Air solenoid valve VMPA14-M1H-J-PI
The Festo part number 573717 is an electrical 5/2-way bistable piston gate valve featuring a 14 mm valve size, piloted control, and a soft sealing principle with positive overlap. This component operates on 24V DC with an operating pressure ranging from -0.9 bar to 10 bar and supports a normalized nominal flow rate of 550 l/min to 670 l/min alongside vacuum applications. Equipped with an IP65 degree of protection when mounted, signal status display, and both detenting and non-detenting manual overrides, it offers reversible flow direction and operates within a pilot pressure range of 3 bar to 8 bar in any mounting position while carrying c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573717
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573717.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...670 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 670 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min...670 l/min
- On switching time
- 9 ms
- Changeover time
- 24 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Permissible voltage uctuations
- +/- 25%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573717. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
