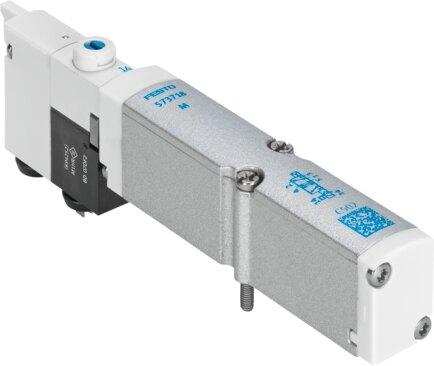

Name: Festo 573722 Air solenoid valve VMPA14-M1H-X-PI
Brand: Festo

Air solenoid valve VMPA14-M1H-X-PI

The Festo part number 573722 is an electrical 14 mm industrial component featuring a 3/2-way closed, monostable piston gate valve design with a soft sealing principle and positive overlap. Operating at 24V DC across an operating pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), this piloted unit delivers a normal nominal flow rate between 360 l/min and 400 l/min with a pneumatic spring reset method, reversible flow direction, and vacuum suitability. It includes a signal status display, detenting and non-detenting manual override, an IP65 degree of protection in mounted state per IEC 60529, and c UL us recognition (OL). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573722
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573722.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 360 l/min...400 l/min
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65 | In mounted state | As per IEC 60529
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Flow direction: Reversible
Lap: Positive overlap
Signal status display: Yes
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes
Note on standard nominal ow rate: MPA-L: 400 l/min | MPA-S: 360 l/min
Standard nominal ow rate with QS-8: 360 l/min...400 l/min
Switching time oﬀ: 20 ms
On switching time: 12 ms
Max. positive test pulse with 0 signal: 400 µs
Max. negative test pulse on 1 signal: 200 µs
Permissible voltage uctuations: +/- 25%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 573722. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
