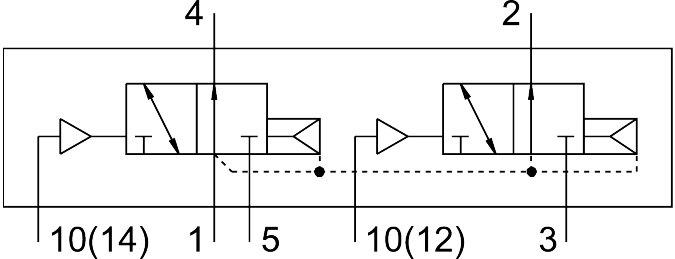

Reference imageConfirm configuration by manufacturer part number.
Festo
573806
Pneumatic valve VUWG-L10-T32U-A-M5
The Festo 573806 is a 10 mm pneumatic industrial component featuring a 2x3/2 open monostable piston gate valve design with direct control and a soft sealing principle. Operating at pressures from 1.5 bar to 10 bar, this unit delivers a normal nominal flow rate of 150 l/min through M5 working ports with an adjustable exhaust air function and a positive overlap lap. It achieves an on switching time of 4 ms and an off switching time of 9 ms, utilizing a pneumatic spring reset across any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573806
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573806.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Pneumatic
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- M5
- Operating pressure
- 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Width dimension
- 10.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Positive overlap
- Pilot pressure
- 1.5 bar...10 bar
- Suitability for vacuum
- No
- Switching time off
- 9 ms
- On switching time
- 4 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 48 g
- Type of mounting
- Alternatively: | On PR manifold rail | With through-hole
