Festo
573807
Pneumatic valve VUWG-L10-T32H-A-M5

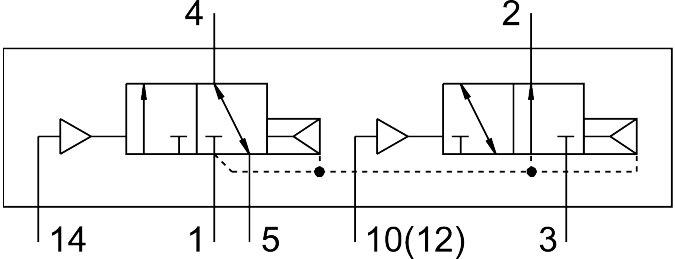

The Festo 573807 is a 10 mm pneumatic industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design. Operating at pressures from 1.5 bar to 10 bar with a normal nominal flow rate of 150 l/min, this directly controlled unit includes an M5 pneumatic working port, soft sealing, adjustable exhaust air function, and a pneumatic spring reset method. It achieves an on switching time of 4 ms and an off switching time of 9 ms across a 10.5 mm width dimension with any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573807
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573807.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Pneumatic
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- M5
- Operating pressure
- 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Width dimension
- 10.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Positive overlap
- Pilot pressure
- 1.5 bar...10 bar
- Suitability for vacuum
- No
- Switching time off
- 9 ms
- On switching time
- 4 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 48 g
- Type of mounting
- Alternatively: | On PR manifold rail | With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573807. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
