Festo
573831
Pneumatic valve VUWG-L14-T32H-A-G18

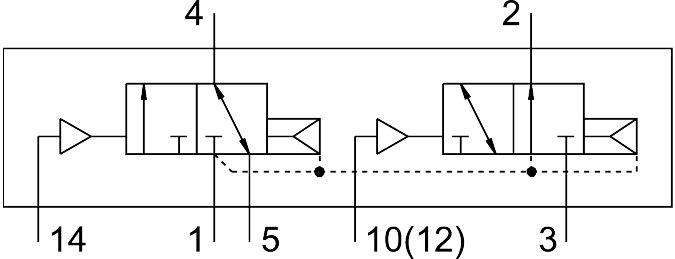

The Festo 573831 is a 14 mm industrial component featuring a 2x3/2 open/closed monostable piston gate valve design with direct pneumatic control and a pneumatic spring reset method. This pneumatic valve operates at pressures ranging from 1.5 bar to 10 bar, delivering a normal nominal flow rate of 650 l/min through G1/8 pneumatic working ports with an adjustable exhaust air function and a positive overlap lap. Featuring a soft sealing principle, a width dimension of 16 mm, and a reversible flow direction with restrictions, the unit achieves an on switching time of 6 ms and an off switching time of 19 ms. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573831
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573831.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Pneumatic
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 650 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Width dimension
- 16 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Flow direction
- Reversible with restrictions
- Lap
- Positive overlap
- Pilot pressure
- 1.5 bar...10 bar
- Suitability for vacuum
- No
- Switching time off
- 19 ms
- On switching time
- 6 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Temperature of medium
- -5 °C...50 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 81 g
- Type of mounting
- Alternatively: | On PR manifold rail | With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573831. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
