Festo
573855
Power supply socket NEBU-G78W5-K-2-N-LE5
The Festo 573855 is an industrial component with a product weight of 680 g, featuring an angled round socket on the field device side and an open-ended cable on the control side, both containing 5 occupied pins. Built upon the NFPA/T3.5.29 R1-2007 norm, electrical connection 1 utilizes a G7/8 coded connection technology with a screw-type lock, a non-standard cable outlet matched to the CPX safety guard, and operates across a DC and AC voltage range of 0 V to 300 V with a contact durability of 100. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573855
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573855.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- NFPA/T3.5.29 R1-2007
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 680 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- Cable outlet not according to industry standard. Matched to CPX safety | guard.
- Electrical connection 1, connection technology
- G7/8 coded as per NFPA/T3.5.29 R1-2007

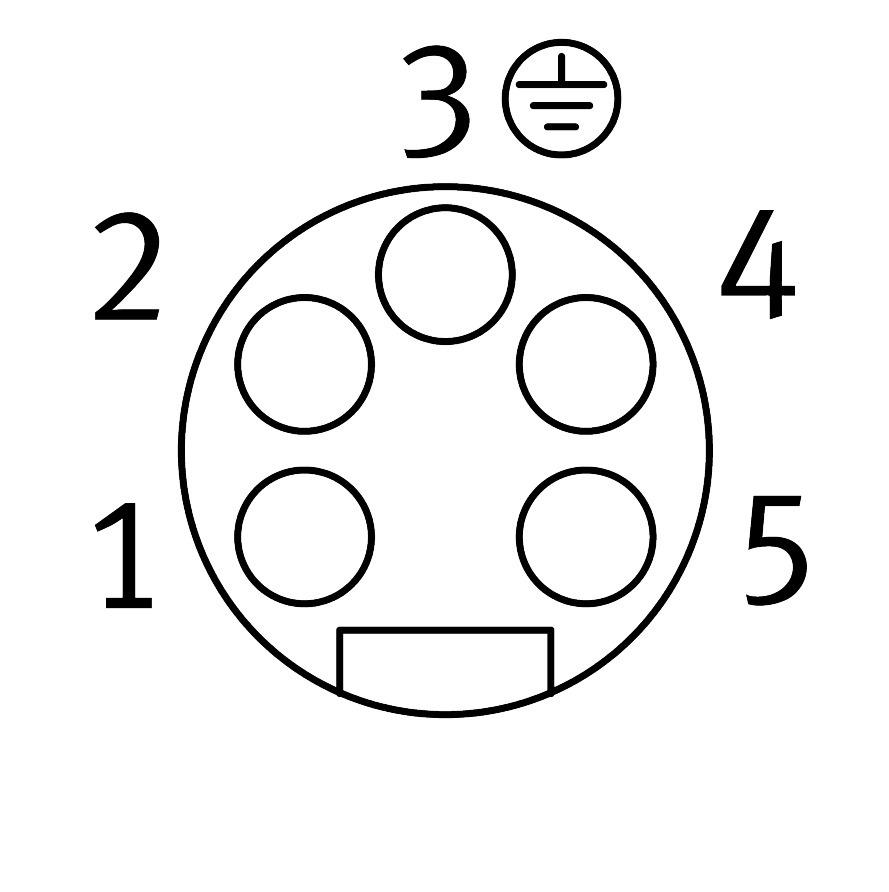

- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- DC operating voltage range
- 0 V...300 V
- Operating voltage range AC
- 0 V...300 V
- Current rating at 40° C
- 9 A
- Surge resistance
- 4 kV
- Cable length
- 2 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 65 mm
- Cable diameter
- 8.7 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 5 x 1.5 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573855. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
