Festo
573914

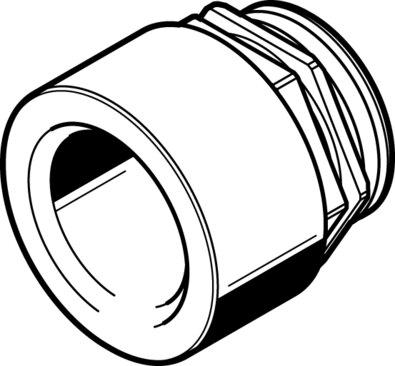

Adapter VMPAL-F20-G1/4
The Festo part number 573914 is an industrial component featuring an 18 mm cartridge pneumatic connection 1 and a G1/4 pneumatic connection 2, housed in a wrought aluminum alloy with RoHS compliance. This unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar, or -13.05 psi to 145 psi) and an ambient temperature range of -5 °C to 50 °C, with a corrosion resistance class of 2 and VDMA24364-B1/B2-L LABS conformity. Weighing 55 g, the components are supplied in a pack size of 10 units. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573914
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573914.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar | -13.05 psi...145 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 55 g
- Pneumatic connection 1
- Cartridge 18 mm
- Pneumatic connection 2
- G1/4
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573914. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
