Festo
573933

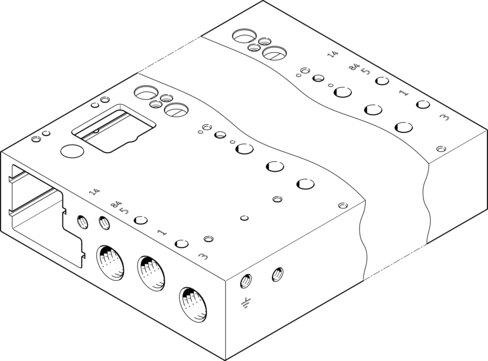

Manifold rail VABM-L1-14G-G14-16-M-GR
The Festo part number 573933 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 16 mm and a product weight of 2211 g. This unit accommodates a maximum of 16 valve positions, incorporates G1/4 pneumatic connections 1, 3, and 5, and utilizes M5 ports for pilot air port 12/14 and pilot exhaust air port 82/84. Certified as c UL us - recognized (OL) and compliant with RoHS material notes, it features a corrosion resistance class (CRC) of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, and supports any mounting position within a storage temperature range of -20 °C to 60 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 573933
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 573933.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 16
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Product weight
- 2211 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 573933. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
