Name: Festo 573938 Manifold rail VABM-L1-14W-G14-24-M-GR
Brand: Festo

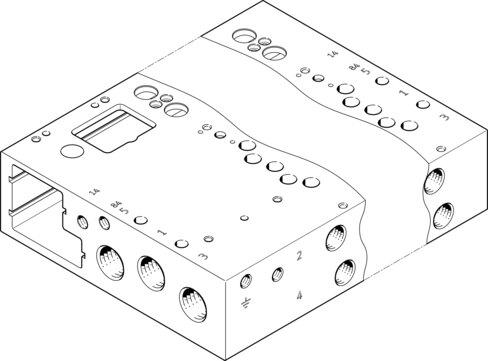

Manifold rail VABM-L1-14W-G14-24-M-GR

The Festo 573938 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 16 mm, a product weight of 2859 g, and a maximum of 24 valve positions supporting any mounting position. This unit includes pneumatic connections G1/4 for ports 1, 3, and 5, pneumatic connections G1/8 for ports 2 and 4, M5 pilot air ports 12/14, and M5 pilot exhaust air ports 82/84, with RoHS-compliant materials rated for storage temperatures between -20 °C and 60 °C. Certified as c UL us - recognized (OL), it achieves corrosion resistance class 2, VDMA24364-B1/B2-L LABS conformity, ISO 14644-1 Class 6 cleanroom suitability, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 573938
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 573938.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 16 mm
Mounting position: Any
Max. no. of valve positions: 24
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Product weight: 2859 g
Pilot air port 12/14: M5
Pilot exhaust air port 82/84: M5
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/4
Pneumatic connection 4: G1/8
Pneumatic connection 5: G1/4
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy
