Reference imageConfirm configuration by manufacturer part number.
Festo
574011

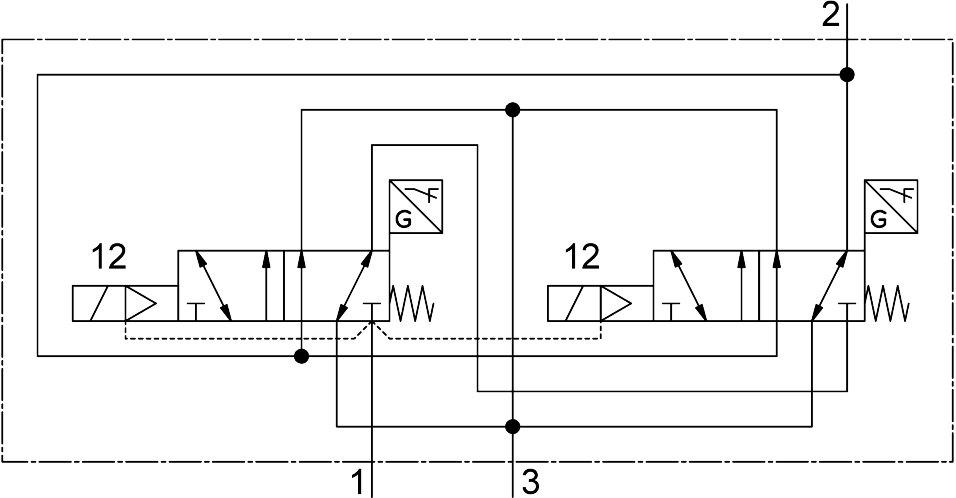

Control block VOFA-L26-T32C-M-G14-1C1-APP
The Festo 574011 is a 3/2-way closed, monostable industrial component featuring a piston gate valve structural design with electrical actuation and a mechanical spring reset method. It delivers a normal nominal flow rate of 1050 l/min through a G1/4 pneumatic working port, operating at 24V DC within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar, 43.5 psi to 145 psi). Built with an adjustable exhaust air function, soft sealing principle, and IP65 and NEMA 4 degree of protection, the unit conforms to EN 60947-5-2 with c UL us recognition, KC-EMV, CE, and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574011
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574011.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1050 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Certication
- c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for machines
- Certicate issuing authority
- UL MH19482
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Safety function
- Exhausting | Tamper protection, protection against unexpected start-up
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574011. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
