574090

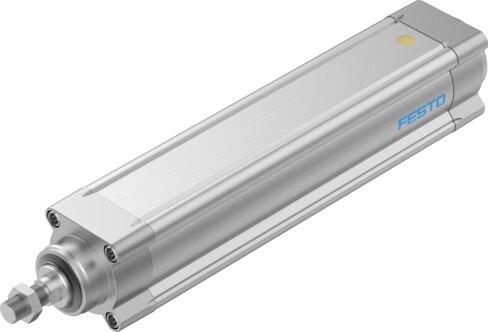

Name: Festo 574090 Electric cylinder ESBF-...-63- -
Brand: Festo

Electric cylinder ESBF-...-63- -

The Festo part number 574090 is an electric cylinder featuring a ball screw structural design with a size of 63, a 25 mm screw diameter, and a stroke length ranging from 30 mm to 1200 mm. Built to ISO 15552 norms with an M16x1.5 piston rod thread and a plain bearing-guide, this servo motor-driven component provides position sensing via proximity switch, a 100% duty cycle, and a maximum piston rod angle of rotation of +/- 0.4 degrees. It offers corrosion resistance class 2 and 3 ratings, VDMA24364 Zone III LABS conformity, ISO 14644-1 cleanroom class 7 suitability, and compatibility with Li-ion battery production under reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574090
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574090.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 63
Stroke: 30 mm...1200 mm
Piston rod thread: M16x1.5
Screw diameter: 25 mm
Max. angle of rotation of the piston rod +/-: 0.4 deg
Based on norm: ISO 15552
Mounting position: Any
Motor type: Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Protection against torsion/guide: With plain bearing-guide
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress | 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40 | IP65
Ambient temperature: 0 °C...60 °C
Max. radial force on actuator shaft: 700 N
Max. feed force Fx: 7000 N
Guide value for payload, horizontal: 700 kg
Guide value for payload, vertical: 700 kg
Moving mass at 0 mm stroke: 1829 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
