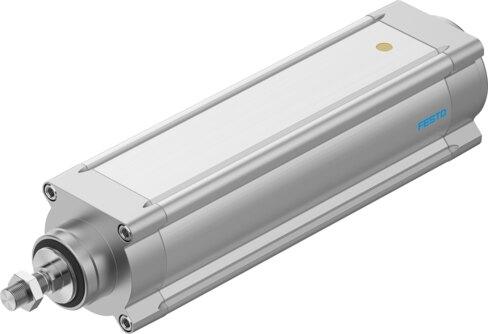

Reference imageConfirm configuration by manufacturer part number.
Festo
574092
Electric cylinder ESBF-...-100- -
The Festo 574092 is an electric cylinder with a ball screw structural design based on the ISO 15552 norm, featuring a size 100, an adjustable stroke from 30 mm to 1500 mm, an M20x1.5 piston rod thread, and a 40 mm screw diameter. Driven by a servo motor with a 100% duty cycle, this component includes a plain bearing-guide maintaining a maximum piston rod angle of rotation of +/- 0.5 degrees and position sensing via proximity switch for mounting in any position. It provides corrosion resistance class 2 and 3, VDMA24364 Zone III LABS conformity, ISO 14644-1 cleanroom class 7 suitability, and compatibility with Li-ion battery production under reduced Cu/Zn/Ni values, while restricting specific metal variants. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574092
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574092.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 30 mm...1500 mm
- Piston rod thread
- M20x1.5
- Screw diameter
- 40 mm
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Protection against torsion/guide
- With plain bearing-guide
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress | 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40 | IP65
- Ambient temperature
- 0 °C...60 °C
- Max. radial force on actuator shaft
- 1100 N
- Max. feed force Fx
- 17000 N
- Guide value for payload, horizontal
- 1700 kg
- Guide value for payload, vertical
- 1700 kg
- Moving mass at 0 mm stroke
- 8786 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574092. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
