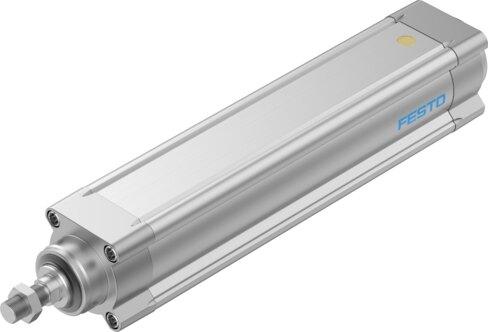

Name: Festo 574095 Electric cylinder ESBF-BS-63-400-5P
Brand: Festo

Electric cylinder ESBF-BS-63-400-5P

The Festo part number 574095 is an electric cylinder with a ball screw structural design based on the ISO 15552 norm, featuring a 400 mm working stroke and size 63 dimensions. This component incorporates a 25 mm screw diameter, a 5 mm/U spindle pitch, an M16x1.5 external piston rod thread, and a plain bearing-guide providing a maximum angle of rotation of +/- 0.4 degrees with a reversing backlash of 30 µm. Designed for servo motor operation with position sensing via proximity switch, it achieves a maximum acceleration of 5 m/s², a maximum rotational speed of 3250 rpm, a maximum speed of 0.27 m/s, and a repetition accuracy of ±0.015 mm in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574095
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574095.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 400 mm
Size: 63
Stroke: 400 mm
Piston rod thread: M16x1.5
Reversing backlash: 30 µm
Screw diameter: 25 mm
Spindle pitch: 5 mm/U
Max. angle of rotation of the piston rod +/-: 0.4 deg
Based on norm: ISO 15552
Mounting position: Any
Piston rod end: External thread
Motor type: Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. acceleration: 5 m/s²
Max. rotational speed: 3250 rpm
Max. speed: 0.27 m/s
Repetition accuracy: ±0.015 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Max. driving torque: 7 Nm
Max. radial force on actuator shaft: 700 N
Max. feed force Fx: 7000 N
