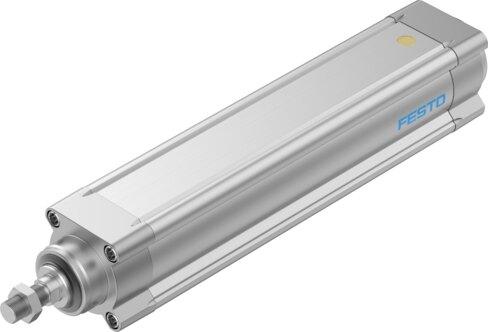

Reference imageConfirm configuration by manufacturer part number.
Festo
574099
Electric cylinder ESBF-BS-63-400-10P
The Festo part number 574099 is an electric cylinder with a ball screw, based on the ISO 15552 norm, featuring a size 63 and a 400 mm working stroke. Driven by a servo motor through a 25 mm screw diameter and 10 mm/U spindle pitch, this component achieves a maximum rotational speed of 3220 rpm, a max speed of 0.53 m/s, and a maximum acceleration of 15 m/s². It incorporates an external M16x1.5 piston rod thread with a plain bearing-guide for torsion protection, yielding a 30 µm reversing backlash, a ±0.01 mm repetition accuracy, and a maximum piston rod angle of rotation of ±0.4 degrees with position sensing via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574099
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574099.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 63
- Stroke
- 400 mm
- Piston rod thread
- M16x1.5
- Reversing backlash
- 30 µm
- Screw diameter
- 25 mm
- Spindle pitch
- 10 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3220 rpm
- Max. speed
- 0.53 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 13.1 Nm
- Max. radial force on actuator shaft
- 700 N
- Max. feed force Fx
- 7000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574099. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
