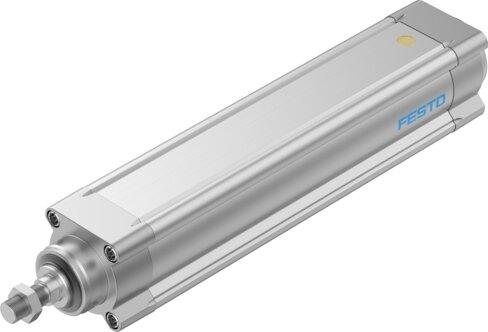

Reference imageConfirm configuration by manufacturer part number.
Festo
574101
Electric cylinder ESBF-BS-63-200-25P
The Festo 574101 is an electric cylinder with a ball screw based on the ISO 15552 norm, featuring a size 63 design with a 200 mm working stroke and a 25 mm screw diameter. This component incorporates a ball spindle type with a 25 mm/U pitch, an M16x1.5 external thread piston rod, a plain bearing-guide for torsion protection, and a 40 µm reversing backlash. Operating with any mounting position, it achieves a maximum speed of 1.35 m/s, a maximum rotational speed of 3260 rpm, a maximum acceleration of 25 m/s², and a repetition accuracy of ±0.01 mm alongside position sensing via a proximity switch and a servo motor type. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574101
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574101.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 63
- Stroke
- 200 mm
- Piston rod thread
- M16x1.5
- Reversing backlash
- 40 µm
- Screw diameter
- 25 mm
- Spindle pitch
- 25 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 3260 rpm
- Max. speed
- 1.35 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 26.5 Nm
- Max. radial force on actuator shaft
- 700 N
- Max. feed force Fx
- 6000 N
