Festo
574102

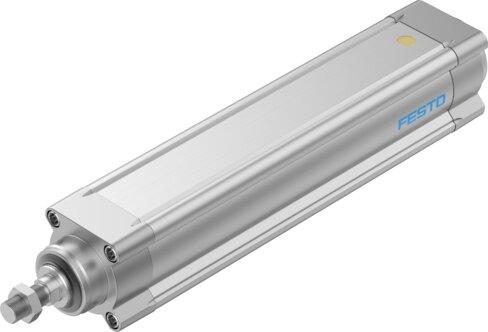

Electric cylinder ESBF-BS-63-300-25P
The Festo 574102 is an electric cylinder with a ball screw based on the ISO 15552 norm, featuring a size 63 designation and a 300 mm working stroke. Driven by a servo motor with a maximum rotational speed of 3260 rpm, this component delivers a 25 mm/U spindle pitch, a 25 mm screw diameter, a maximum speed of 1.35 m/s, and a maximum acceleration of 25 m/s² with a repetition accuracy of ±0.01 mm and a reversing backlash of 40 µm. It includes an M16x1.5 external thread piston rod featuring a plain bearing-guide with a maximum angle of rotation of +/- 0.4 degrees, position sensing via proximity switch, and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574102
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574102.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 63
- Stroke
- 300 mm
- Piston rod thread
- M16x1.5
- Reversing backlash
- 40 µm
- Screw diameter
- 25 mm
- Spindle pitch
- 25 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.4 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 3260 rpm
- Max. speed
- 1.35 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 26.5 Nm
- Max. radial force on actuator shaft
- 700 N
- Max. feed force Fx
- 6000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574102. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
