Festo
574115

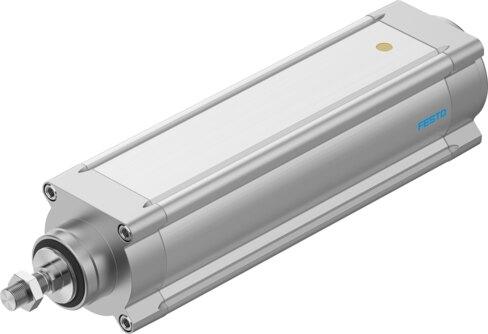

Electric cylinder ESBF-BS-100-100-5P
The Festo 574115 is an electric cylinder with a ball screw structural design based on the ISO 15552 norm, featuring a size of 100, a 100 mm working stroke and stroke, an M20x1.5 piston rod thread, and an external thread piston rod end. This component incorporates a plain bearing-guide for torsion protection, a 40 mm screw diameter, a 5 mm/U spindle pitch, a 30 µm reversing backlash, a max rotational speed of 2010 rpm, a max speed of 0.17 m/s, a max acceleration of 5 m/s², a repetition accuracy of ±0.01 mm, and a max angle of rotation of the piston rod of ±0.5 deg. Configured for any mounting position, it utilizes a servo motor and position sensing via a proximity switch. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574115
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574115.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 100
- Stroke
- 100 mm
- Piston rod thread
- M20x1.5
- Reversing backlash
- 30 µm
- Screw diameter
- 40 mm
- Spindle pitch
- 5 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 2010 rpm
- Max. speed
- 0.17 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 16.9 Nm
- Max. radial force on actuator shaft
- 1100 N
- Max. feed force Fx
- 17000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574115. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
