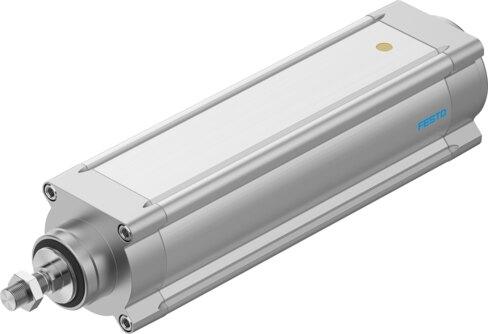

Name: Festo 574124 Electric cylinder ESBF-BS-100-300-40P
Brand: Festo

Electric cylinder ESBF-BS-100-300-40P

The Festo part number 574124 is an electric cylinder with a ball screw structural design based on the ISO 15552 norm, featuring a 100 size and a 300 mm working stroke. Driven by a servo motor, this component incorporates an M20x1.5 external piston rod thread, a 40 mm screw diameter, a 40 mm/U spindle pitch, and a plain bearing-guide for torsion protection with a maximum piston rod rotation angle of plus or minus 0.5 degrees. It delivers a maximum speed of 1.34 m/s, a maximum rotational speed of 2010 rpm, a maximum acceleration of 25 m/s^2, 40 um reversing backlash, and a repetition accuracy of plus or minus 0.01 mm with position sensing via proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574124
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574124.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 300 mm
Size: 100
Stroke: 300 mm
Piston rod thread: M20x1.5
Reversing backlash: 40 µm
Screw diameter: 40 mm
Spindle pitch: 40 mm/U
Max. angle of rotation of the piston rod +/-: 0.5 deg
Based on norm: ISO 15552
Mounting position: Any
Piston rod end: External thread
Motor type: Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. acceleration: 25 m/s²
Max. rotational speed: 2010 rpm
Max. speed: 1.34 m/s
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Max. driving torque: 102.6 Nm
Max. radial force on actuator shaft: 1100 N
Max. feed force Fx: 14500 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574124. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
