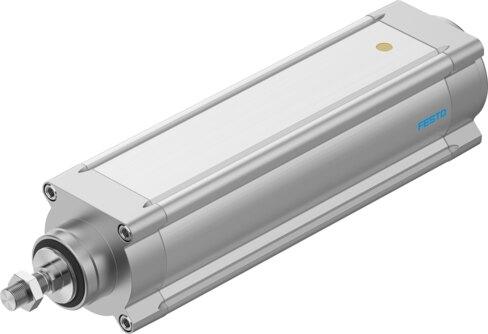

Reference imageConfirm configuration by manufacturer part number.
Festo
574125
Electric cylinder ESBF-BS-100-400-40P
The Festo part number 574125 is an electric cylinder with a ball screw structural design based on the ISO 15552 norm, featuring a size 100 and a working stroke of 400 mm. This component integrates a 40 mm screw diameter with a 40 mm/U spindle pitch, an M20x1.5 external thread piston rod end, and a plain bearing-guide providing a torsion protection and guide with a maximum angle of rotation of +/- 0.5 degrees. It operates via a servo motor with position sensing through a proximity switch, achieving a maximum speed of 1.34 m/s, a maximum rotational speed of 2010 rpm, a maximum acceleration of 25 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 40 µm in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574125
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574125.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 100
- Stroke
- 400 mm
- Piston rod thread
- M20x1.5
- Reversing backlash
- 40 µm
- Screw diameter
- 40 mm
- Spindle pitch
- 40 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.5 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 2010 rpm
- Max. speed
- 1.34 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 102.6 Nm
- Max. radial force on actuator shaft
- 1100 N
- Max. feed force Fx
- 14500 N
