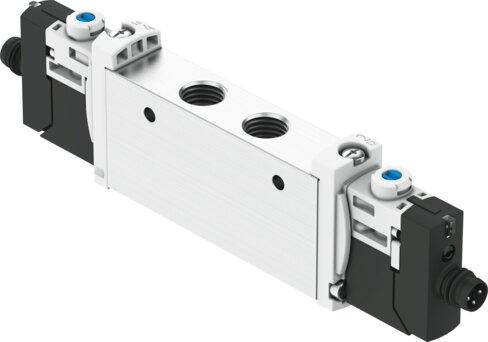

Reference imageConfirm configuration by manufacturer part number.
Festo
574228
Air solenoid valve VUVG-L14-T32H-AT-G18-1R8L
The Festo 574228 is an electrical 14 mm industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design with a soft sealing principle. It operates at 24V DC within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), delivering a normal nominal flow rate of 580 l/min to 590 l/min through G1/8 pneumatic working ports. The unit incorporates piloted internal pilot air supply, pneumatic spring reset, adjustable exhaust air function, and a nominal width of 4.6 mm with IP65 degree of protection when utilizing a plug socket. Compliant with RCM, c UL us (OL), CE, and UKCA directives, it offers detenting, non-detenting, and covered manual override options for any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574228
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574228.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 580 l/min...590 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP65 | With plug socket
- Nominal width
- 4.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 25 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574228. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
