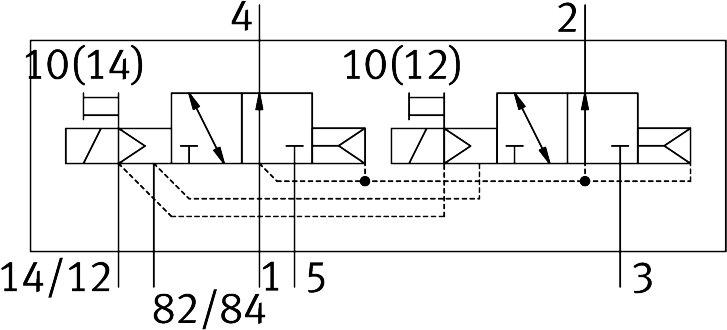

Reference imageConfirm configuration by manufacturer part number.
Festo
574243
Air solenoid valve VUVG-B14-T32U-AZT-F-1R8L
The Festo 574243 is an electrical 14 mm piston gate valve featuring a 2x3/2 open monostable function, piloted control, and a nominal width of 4.6 mm. It delivers a normal nominal flow rate of 510 l/min to 580 l/min across an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) at a 24V DC operating voltage. This IP65-rated component includes a soft sealing principle, an adjustable exhaust air function, a pneumatic spring reset method, an external pilot air supply port, and versatile manual override options including detenting, non-detenting, and covered configurations. Certified with RCM compliance and c UL us recognition, it carries CE and UKCA markings in accordance with applicable EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574243
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574243.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 510 l/min...580 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP65 | With plug socket
- Nominal width
- 4.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 25 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574243. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
