Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

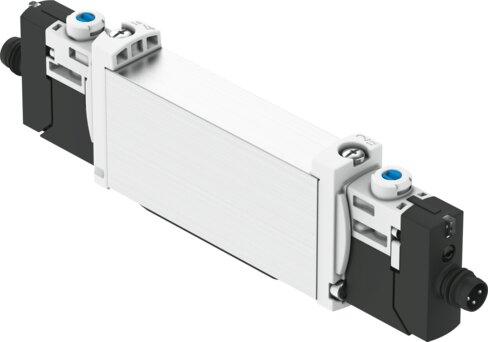

Reference imageConfirm configuration by manufacturer part number.
Festo
574249
Air solenoid valve VUVG-B14-P53E-ZT-F-1R8L
The Festo part number 574249 is an electrical 14 mm industrial component featuring a 5/3 exhausted piston gate valve design with a soft sealing principle and a 5.6 mm nominal width. Operating at 24V DC with an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a normal nominal flow rate of 460 l/min to 600 l/min, this piloted unit includes an external pilot air supply port, a mechanical spring reset method, and adjustable exhaust air function. It achieves an IP65 degree of protection with a plug socket, features detenting, non-detenting, and covered manual override options, can be mounted in any position, and carries RCM, c UL us, CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574249
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574249.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 460 l/min...600 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP65 | With plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Switching time off
- 40 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574249. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
