Festo
574302

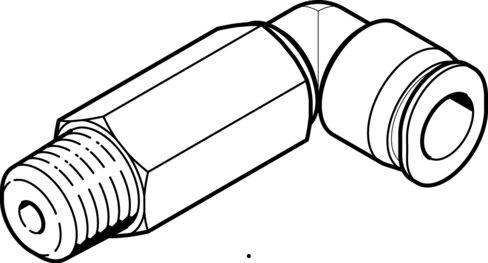

Push-in L-fitting, long QBMLL-M5-1/8-U-M
The Festo 574302 is a standard, L-shape long industrial component featuring an M5 external thread pneumatic connection 1 and an 1/8-inch outside diameter pneumatic connection 2 for tubing. Operating within a pressure range of 13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F, this component utilizes a sealing ring on the screwed plug and an external hexagon AF 8 mounting type with a nominal tightening torque of 0.5 Nm. It operates with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and weighs 0.282 oz with a gray releasing ring. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574302
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574302.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape, long
- Pack size
- 0
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Nominal tightening torque
- 0.5 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 0.282 oz
- Type of mounting
- External hexagon, AF 8
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574302. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
