Festo
574321
Connecting cable NEBU-M12G5-E-5-Q8N-M12G5
This Festo industrial component, part number 574321, weighs 434 g and conforms to standards EN 60947-5-2, EN 61076-2-101, and IEC 61010-1 with a contact durability of 100. It features a field device side with an M12x1 A-coded straight socket connection utilizing 5 occupied pins, a screw-type lock with hexagon AF13 and vertical knurling, and a terminal allocation of Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, and Pin 5 = GY. The control side consists of a straight M12x1 A-coded plug connection with 5 occupied pins, and the cable designation is without label holder. Please submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574321
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574321.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 60947-5-2 | EN 61076-2-101 | IEC 61010-1
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 434 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

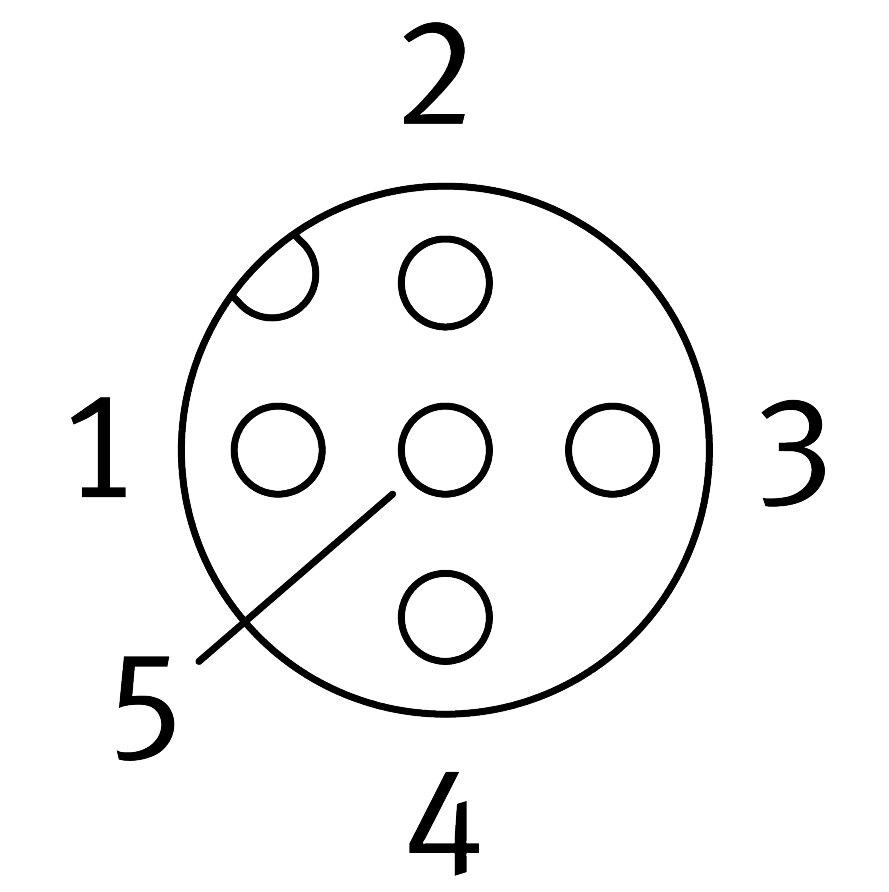

- Electrical connection 1, terminal allocation
- Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK | Pin 5 = GY
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 13 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, terminal allocation
- Pin 1 = BN | Pin 2 = WH
