Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

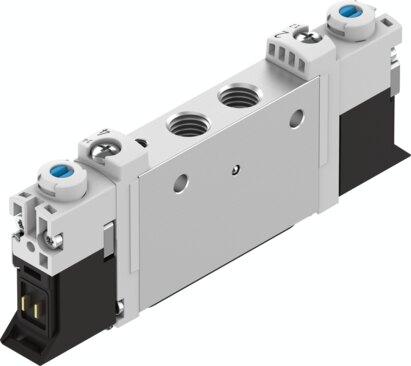

Reference imageConfirm configuration by manufacturer part number.
Festo
574361
Air solenoid valve VUVG-L10-T32U-MZT-M7-1P3
The Festo 574361 is an electrical piston gate valve featuring a 2x3/2 open monostable valve function, a 10 mm valve size, and a normal nominal flow rate of 155 l/min. Operating at 24V DC across a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted component includes an M7 pneumatic working port, external pilot air supply port, adjustable exhaust air function, and a mechanical spring reset method. It incorporates soft sealing, a 1.9 mm nominal width, versatile mounting positions, and a manual override that is detenting, non-detenting, or covered, alongside an IP40, IP65, or plug socket degree of protection. This unit carries RCM compliance, c UL us recognition, CE marking per EU EMC, low voltage, and RoHS directives, and UKCA marking per UK EMC, electrical equipment, and RoHS instructions. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574361
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574361.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 155 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 1.9 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...0.8 MPa
- Pilot pressure
- 2 bar...8 bar
- Suitability for vacuum
- Yes
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574361. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
