574373

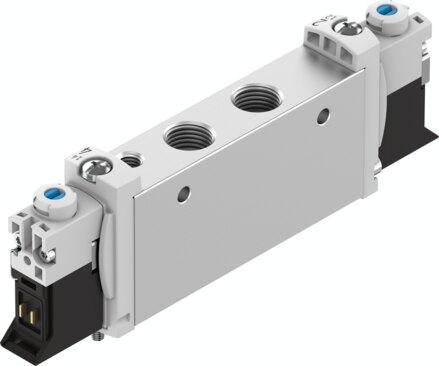

Name: Festo 574373 Air solenoid valve VUVG-L14-T32U-MZT-G18-1P3
Brand: Festo

Air solenoid valve VUVG-L14-T32U-MZT-G18-1P3

The Festo 574373 is an electrical industrial component featuring a 2x3/2 open monostable piston gate valve design with a 14 mm valve size and a 4.3 mm nominal width. Operating at 24V DC, this piloted component delivers a normal nominal flow rate between 480 l/min and 500 l/min across an operating pressure range of -0.09 MPa to 1 MPa through G1/8 pneumatic working ports and an external pilot air supply. It includes a mechanical spring reset, adjustable exhaust air function, soft sealing principle, versatile mounting position, and IP40, IP65, or plug socket protection, alongside manual override options and certifications including RCM and c UL us. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574373
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574373.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 open monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 480 l/min...500 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | IP65 | With plug socket
Nominal width: 4.3 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
