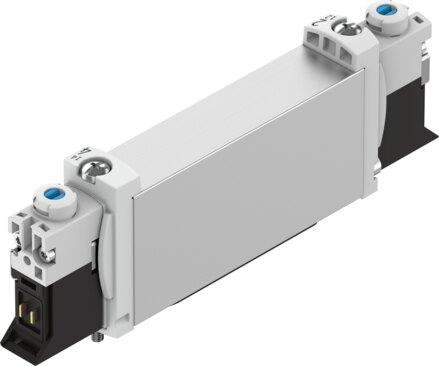

Name: Festo 574377 Air solenoid valve VUVG-B14-T32U-MZT-F-1P3
Brand: Festo

Air solenoid valve VUVG-B14-T32U-MZT-F-1P3

The Festo part number 574377 is a 14 mm electrical piston gate valve featuring a 2x3/2 open monostable valve function, piloted control, and external pilot air supply port. This component delivers a normal nominal flow rate between 410 l/min and 450 l/min at an operating pressure ranging from -0.09 MPa to 1 MPa, utilizing a soft sealing principle, mechanical spring reset, and adjustable exhaust air function. Designed with a 4.3 mm nominal width, flange pneumatic working ports, IP40 to IP65 protection rating with a plug socket, and versatile manual override options including detenting, non-detenting, and covered configurations, it operates on 24V DC. Certified with RCM and c UL us recognition, the unit includes CE and UKCA markings conforming to applicable EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574377
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574377.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 open monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 410 l/min...450 l/min
Pneumatic working port: Flange
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Mechanical spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | IP65 | With plug socket
Nominal width: 4.3 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574377. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
