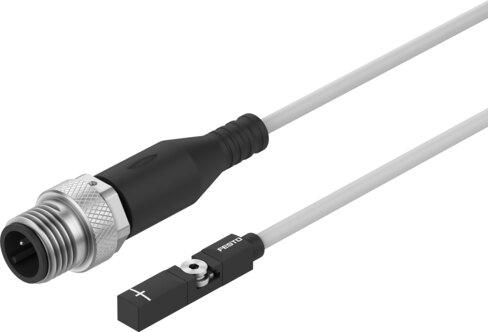

Name: Festo 574382 Proximity sensor CRSMT-8M-PS-24V-K-0,3-M12-EX2
Brand: Festo

Proximity sensor CRSMT-8M-PS-24V-K-0,3-M12-EX2

The Festo part number 574382 is an industrial magneto-resistive position sensor designed for T-slot mounting based on the EN 60947-5-2 norm, featuring a PNP switching output with a repetition accuracy of 0.2 mm. This component is cooling lubricant-proof, alkali-proof, and acid-proof, operating within an ambient temperature range of -40 °C to 85 °C and rated for ATEX and UKEX Zone 2 gas and Zone 22 dust hazardous environments. It carries RCM, CE, and UKCA markings, complies with RoHS and halogen-free material requirements, and is referenced in the actuator-sensor overview 'The right sensor for the actuator'. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574382
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574382.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: For T-slot
Based on norm: EN 60947-5-2
Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC T4 Gc X
ATEX category for dust: II 3D
Type of (ignition) protection for dust: Ex tc IIIC T120°C Dc X
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Explosive ambient temperature: -40°C <= Ta <= +85°C
Special features: Cooling lubricant-proof | Alkali-proof | Acid-proof
Note on materials: RoHS compliant | Halogen-free
Application note: Support / actuator-sensor overview "The right sensor for the actuator"
Measured variable: Position
Measuring principle: Magneto-resistive
Ambient temperature: -40 °C...85 °C
Repetition accuracy: 0.2 mm
Switching output: PNP
Switching element function: N.O. contact
On time: 1 ms
Switch-oﬀ time: 1 ms
