Festo
574398

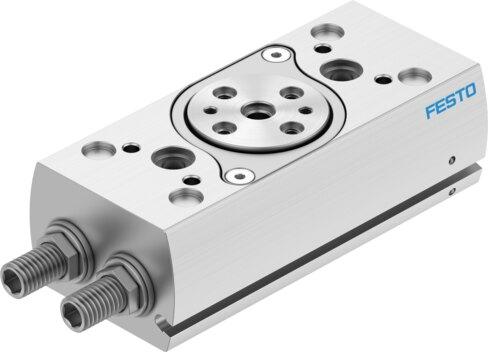

Rotary actuator DRRD-12-
The Festo 574398 is a double-acting industrial component featuring a gear rack and pinion structural design with a size 12 and a 180-degree swivel angle. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this unit delivers a theoretical torque of 0.8 Nm at 6 bar and accommodates a permissible mass moment of inertia from 0.008 kgm² to 0.03 kgm². Equipped with elastic cushioning rings/pads at both ends, external hydraulic cushioning, and normal internal hydraulic cushioning, it includes a high-alloy stainless steel drive shaft, NBR and TPE-U(PU) seals, and allows mounting in any position via through-hole or internal thread. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574398
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574398.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Swivel angle
- 180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends | External hydraulic cushioning | Internal hydraulic cushioning normal
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Max. number of intermediate positions
- 1
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Theoretical torque at 6 bar
- 0.8 Nm
- Permissible mass moment of inertia
- 0.008 kgm²...0.03 kgm²
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574398. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
