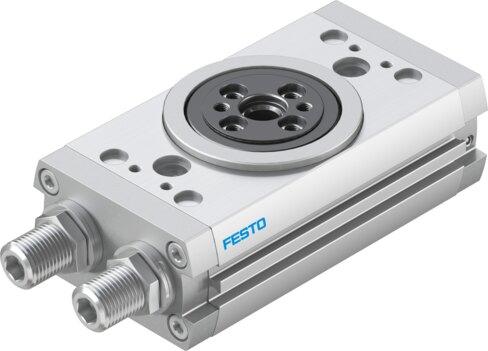

Name: Festo 574401 Rotary actuator DRRD-25-
Brand: Festo

Rotary actuator DRRD-25-

The Festo 574401 is a double-acting industrial component featuring a size 25 gear rack and pinion structural design with a 180-degree swivel angle and any mounting position. It operates on compressed air as per ISO 8573-1:2010 [7:4:4] at pressures from 0.2 MPa to 1 MPa (2 bar to 10 bar), utilizing elastic cushioning rings/pads at both ends alongside internal and external hydraulic cushioning options. Certified for hazardous locations with ATEX and UKEX compliance for gas Zone 1 (II 2G Ex h IIC T4 Gb) and dust Zone 21 (II 2D Ex h IIIC T120°C Db) within an explosive ambient temperature range of -10°C to +60°C, this unit supports position sensing via proximity switch and one intermediate position. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574401
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574401.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 25
Swivel angle: 180 deg
Cushioning: Elastic cushioning rings/pads at both ends | Internal hydraulic cushioning, hard | External hydraulic cushioning | Internal hydraulic cushioning, soft | Internal hydraulic cushioning normal
Mounting position: Any
Structural design: Gear rack/pinion
Max. number of intermediate positions: 1
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T120°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -10 °C...60 °C
Theoretical torque at 6 bar: 5.15 Nm
