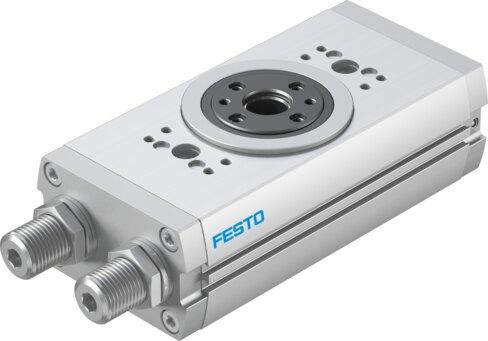

Name: Festo 574405 Rotary actuator DRRD-50-
Brand: Festo

Rotary actuator DRRD-50-

The Festo part number 574405 is a double-acting industrial component featuring a size 50 design, a 180-degree swivel angle, and a gear rack/pinion structural design with internal hydraulic cushioning (normal and hard) and external hydraulic cushioning. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), this unit allows for any mounting position, one intermediate position, and position sensing via a proximity switch, with oil lubrication permitted and required for continued use. Certified for explosive atmospheres in ATEX and UKEX Zone 1, Zone 2, Zone 21, and Zone 22, the component carries CE, UKEX, and EPL Db/Gb markings with an explosive ambient temperature range of -10°C to +60°C, gas ignition protection Ex h IIC T4 Gb (ATEX category II 2G), and dust ignition protection Ex h IIIC T120°C Db (ATEX category II 2D). Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 574405
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 574405.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 50
Swivel angle: 180 deg
Cushioning: Internal hydraulic cushioning, hard | External hydraulic cushioning | Internal hydraulic cushioning normal
Mounting position: Any
Structural design: Gear rack/pinion
Max. number of intermediate positions: 1
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb
Type of (ignition) protection for dust: Ex h IIIC T120°C Db
Explosive ambient temperature: -10°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -10 °C...60 °C
Theoretical torque at 6 bar: 53 Nm
Permissible mass moment of inertia: 2 kgm²...20 kgm²
Type of mounting: Alternatively:

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 574405. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
