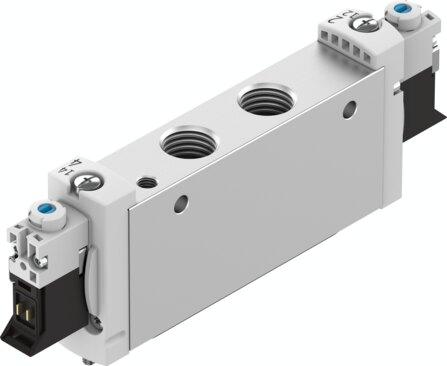

Reference imageConfirm configuration by manufacturer part number.
Festo
574427
Air solenoid valve VUVG-L18-T32H-MT-G14-1P3
The Festo 574427 is a piloted industrial component featuring a 2x3/2 open/closed monostable valve function, an 18 mm valve size, and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this electrical-actuation unit delivers a normal nominal flow rate of 920 l/min through G1/4 pneumatic working ports and a 5.7 mm nominal width. It includes an adjustable exhaust air function, mechanical spring reset, internal pilot air supply, and offers IP40 or IP65 protection with a plug socket alongside detenting, non-detenting, and covered manual overrides for mounting in any position. Certified with RCM and c UL us recognition, the device complies with EU and UKCA directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574427
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574427.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 920 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 5.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.2 MPa...0.8 MPa
- Pilot pressure
- 2 bar...8 bar
- Switching time off
- 22 ms
