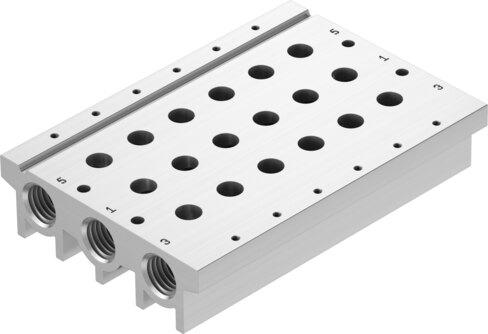

Reference imageConfirm configuration by manufacturer part number.
Festo
574459
Manifold rail VABM-L1-18S-G38-6
Engineered by Festo with a wrought aluminum alloy manifold rail and a width dimension of 19 mm, this industrial component supports a maximum of 16 valve positions and an operating pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa). The unit features G3/8 pneumatic connections for ports 1, 3, and 5, achieves a moderate corrosion resistance class (CRC) of 2, and weighs 510 g with RoHS-compliant materials. It holds c UL us recognition and RCM compliance, and is suitable for battery production with reduced Cu/Zn/Ni values alongside ISO 14644-1 cleanroom suitability of class 5. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574459
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574459.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 19 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 1.18 Nm
- Max. tightening torque for wall mounting
- 3 Nm
- Product weight
- 510 g
- Pneumatic connection 1
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
