Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

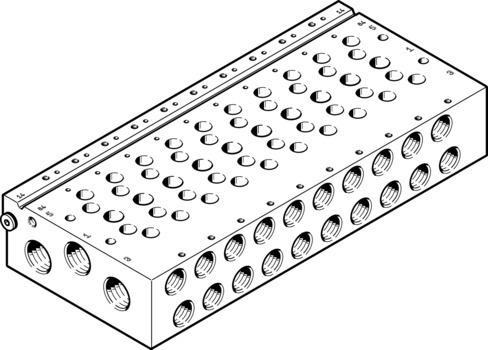

Reference imageConfirm configuration by manufacturer part number.
Festo
574467
Manifold rail VABM-L1-18W-G38-2
The Festo part number 574467 is a 467 g industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 19 mm and a moderate corrosion resistance class (CRC) of 2. It accommodates a maximum of 16 valve positions, operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and carries RCM compliance and c UL us recognition. This unit incorporates G3/8 pneumatic connections 1, 3, and 5, G1/4 pneumatic connections 2 and 4, M5 pilot air ports 12/14, and M5 pilot exhaust air ports 82/84, with specific maximum tightening torques of 1.5 Nm for DIN rail mounting, 1.18 Nm for valve mounting, and 3 Nm for wall mounting. RoHS compliant and conforming to VDMA24364-B1/B2-L LABS standards, it requires buyers to submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 574467
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 574467.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 19 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 1.18 Nm
- Max. tightening torque for wall mounting
- 3 Nm
- Product weight
- 467 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 574467. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
